Lookah Snail 2 0 Wax Vape Kit Manual

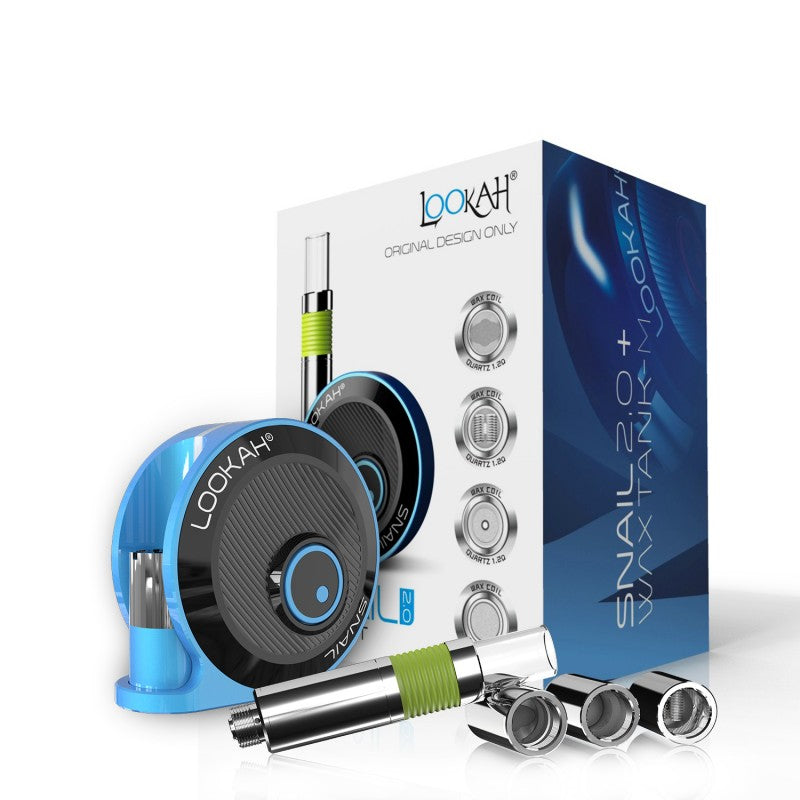

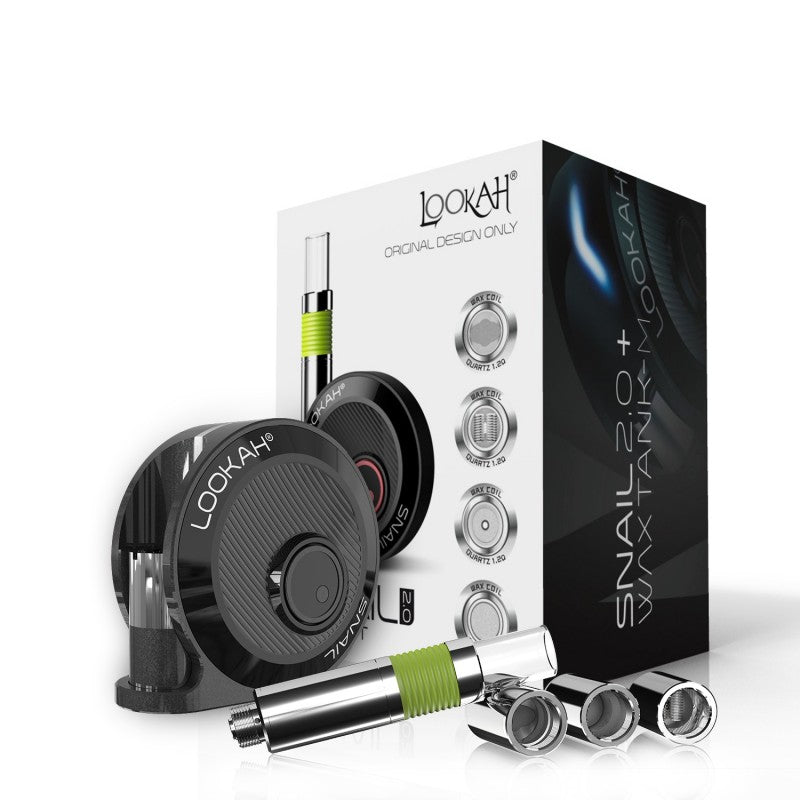

Introducing the Lookah Snail 2.0 Wax Tank-M Kit – a versatile vaping companion featuring a robust 350mAh battery with adjustable voltage for a customized experience. Its distinctive design is not only eye-catching but also compact and ergonomic, ensuring a comfortable grip during use. The kit comes with an array of coil options tailored for concentrates, enhancing your vaping sessions. Plus, it's compatible with standard 510 cartridges, adding to its convenience and utility.

To turn the device on or off, press the power button located on the front face of the device 5 times in quick succession.

Adjust the voltage by pressing the power button 2 times quickly. The device will cycle through the voltage settings, indicated by different LED colors.

To activate the pre-heat function, press the power button 3 times. The LED indicator will show a green light alternating with blue while pre-heating. To stop the pre-heat function, simply press the power button once.

To start vaping, press and hold the power button while inhaling through the mouthpiece.

Connect the device to a power source using a USB cable. The LED will flash red while charging and turn cyan when fully charged.

Normal Operation

• 3.2V Setting: Blue light
• 3.6V Setting: Purple light
• 4.1V Setting: White light

Warnings and Alerts

• Lower battery: Red light flashes
• High temperature alarm: Purple light flashes
• Output short-circuit: Yellow light flashes
• Output overload alarm (resistance < 1 S): Cyan light flashes
• Output timeout: Indicator lights flash

• The device may become moderately heated during use, which is normal. If it becomes too hot to touch, please turn it off to cool down.
• Continuous use might trigger the over-heat protection system, pausing operation until the device cools to a safe temperature.
• This product is not intended for use by individuals under the legal smoking age, non-smokers, expecting or nursing mothers, or individuals with health conditions impacted by smoking.
• The device's built-in battery should not be exposed to high temperatures or humidity.
• Ensure the device operates within its working temperature range of 23°F to 104°F.
• Keep away from water and turn off when not in use.

• Battery Capacity: 350mAh
• Charging Current: 250 mA
• Input Voltage: 5V
• Resistance Range: 1.08~9.999
• Output Voltages: 4.1V, 3.6V, 3.2V

Built-in Safety Features

• Over-charge Protection: Stops charging at 4.25V
• Over Discharge Protection: No output below 3.2V; Power off below 2.5V
• Short-circuit Protection: No output when load is lower than 0.5R
• Overload Protection: No output when load is unsatisfactory
• Temperature Protection: No output above 158°F or below 5°F
• Smoke Overtime Protection: Output shuts down after 10 seconds of continuous use

For optimal performance and safety, please read this manual thoroughly before using the device.
